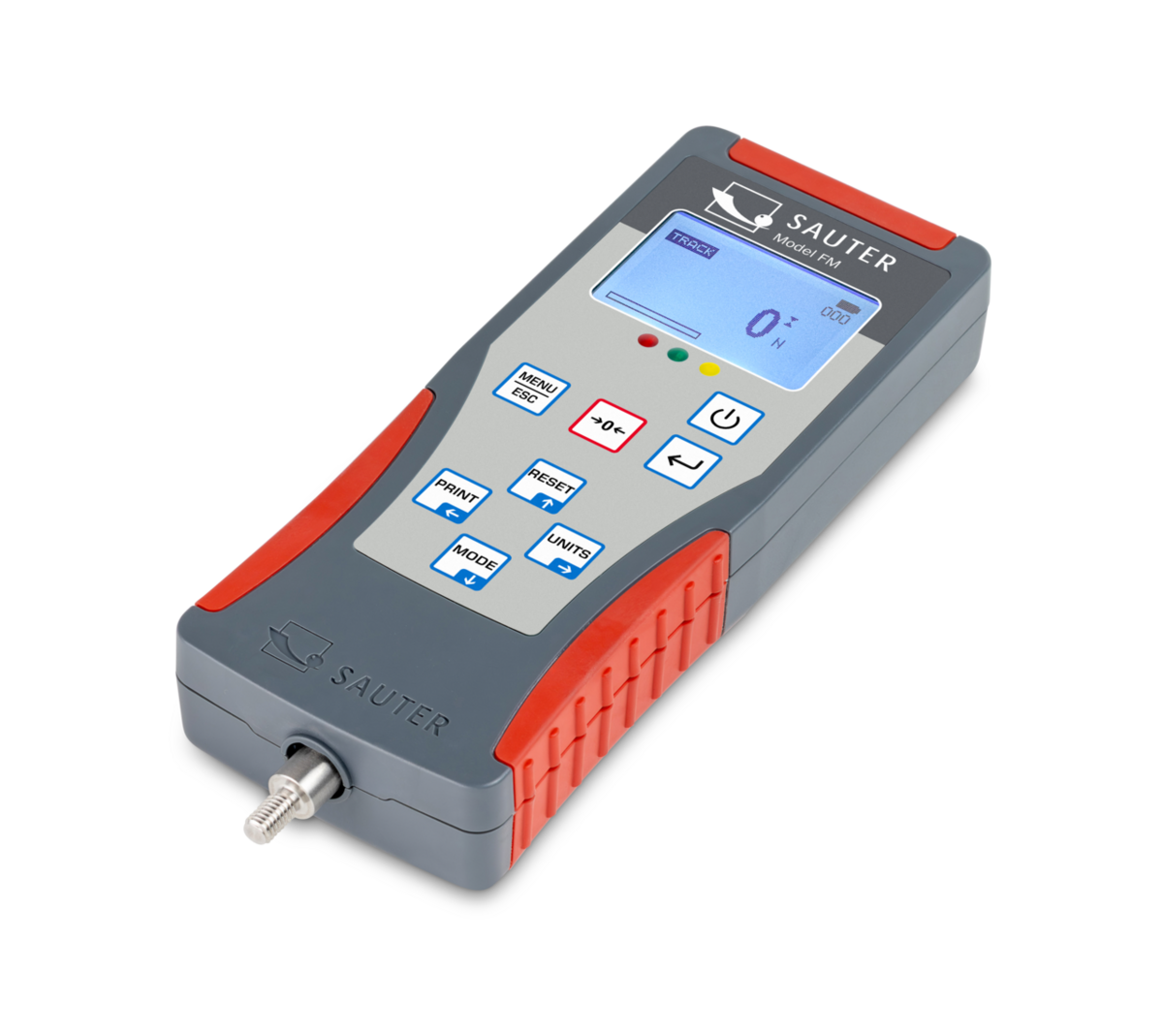

Digital force gauge (internal measuring cell)
FM 5

Product family: FM-S

Universal digital force gauge with graphic-assisted display and integrated load cell

Measuring range force [Max] (N)	5 N
Readability force [d] (N)	0,002 N
Tolerance (% of [Max])	0,2%
Measuring head measuring frequency	1000 Hz
Supplied power supply	Accu & Power supply
Memory function
Limit-setting function
Hold function
Peak function

Your price

€ 550,00 *

*plus shipping costs (not applicable for downloads), plus VAT

Available on stock

We will be happy to consult you on our SAUTER measuring devices

Tel.: +49 7433 9933-562

Description

Turnable display with backlight
Peak-Hold function to capture the peak value or Track function for continuous display of measurement
Can be mounted on all SAUTER test stands up to 5 kN
Capacity display: A bar lights up to show how much of the measuring range is still available
Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by a visual signal
Internal memory for up to 500 measurement values

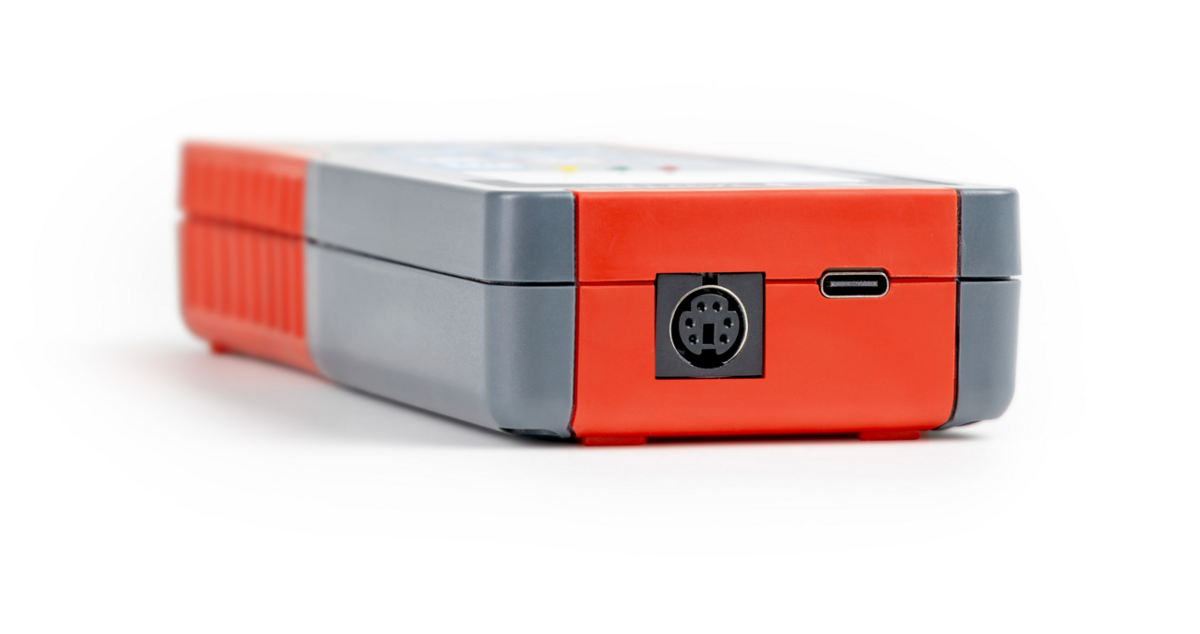

USB-C and PS/2 data interfaces for flexible data transfer and device coupling
Selectable measuring units: N, kN, kgf, lbf
Standard attachments: as shown

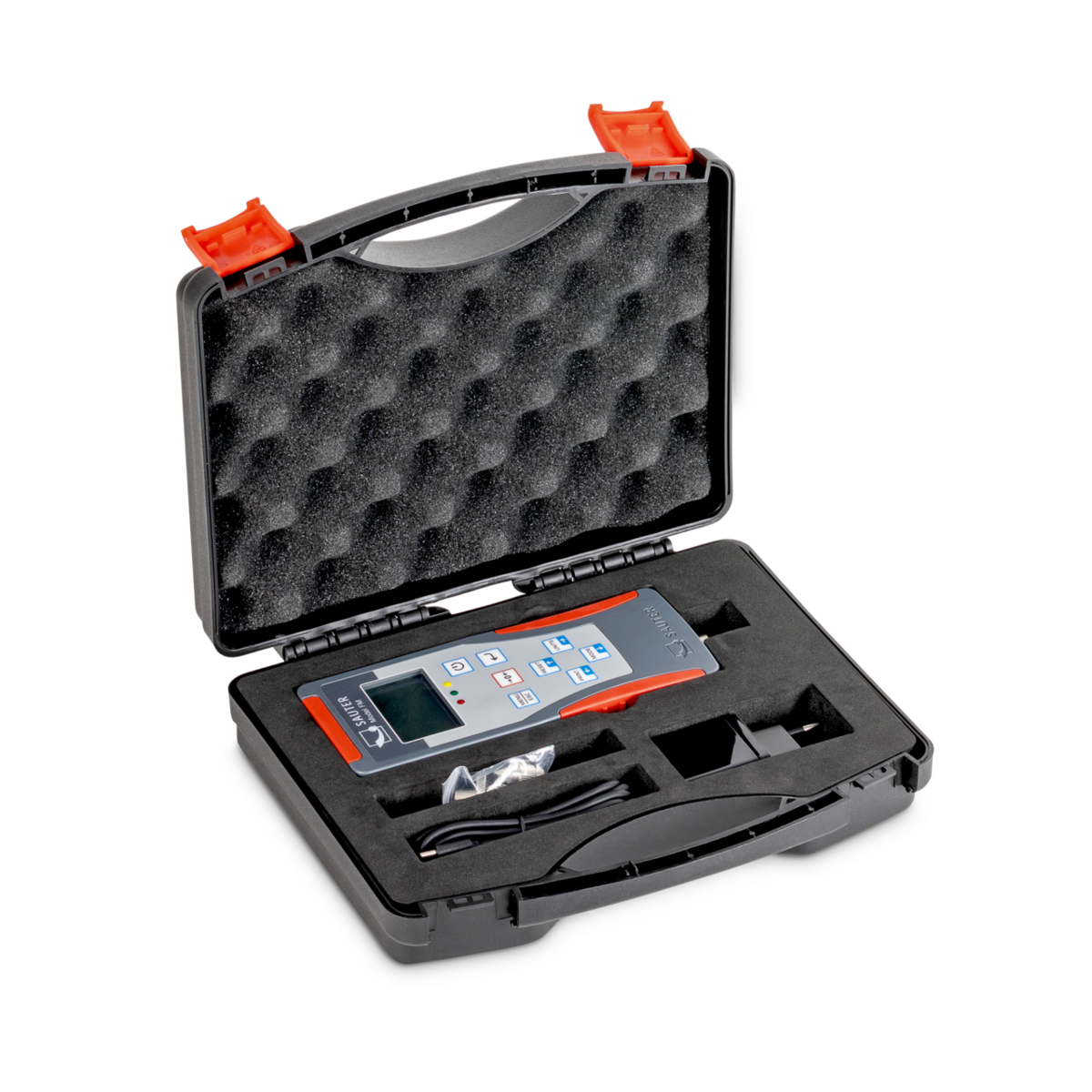

Delivered in a robust carrying case

Measuring range force [Max] (N)	5 N
Readability force [d] (N)	0,002 N
Tolerance (% of [Max])	0,2%
Measuring head measuring frequency	1000 Hz
Supplied power supply	Accu & Power supply
Memory function
Limit-setting function
Hold function
Peak function
Material housing	ABS plastic
Dimensions completely mounted (W×D×H)	71×31×180 mm
Net weight approx.	0,35 kg
Interfaces	USB-Device
GTIN/EAN number	4045761494893
