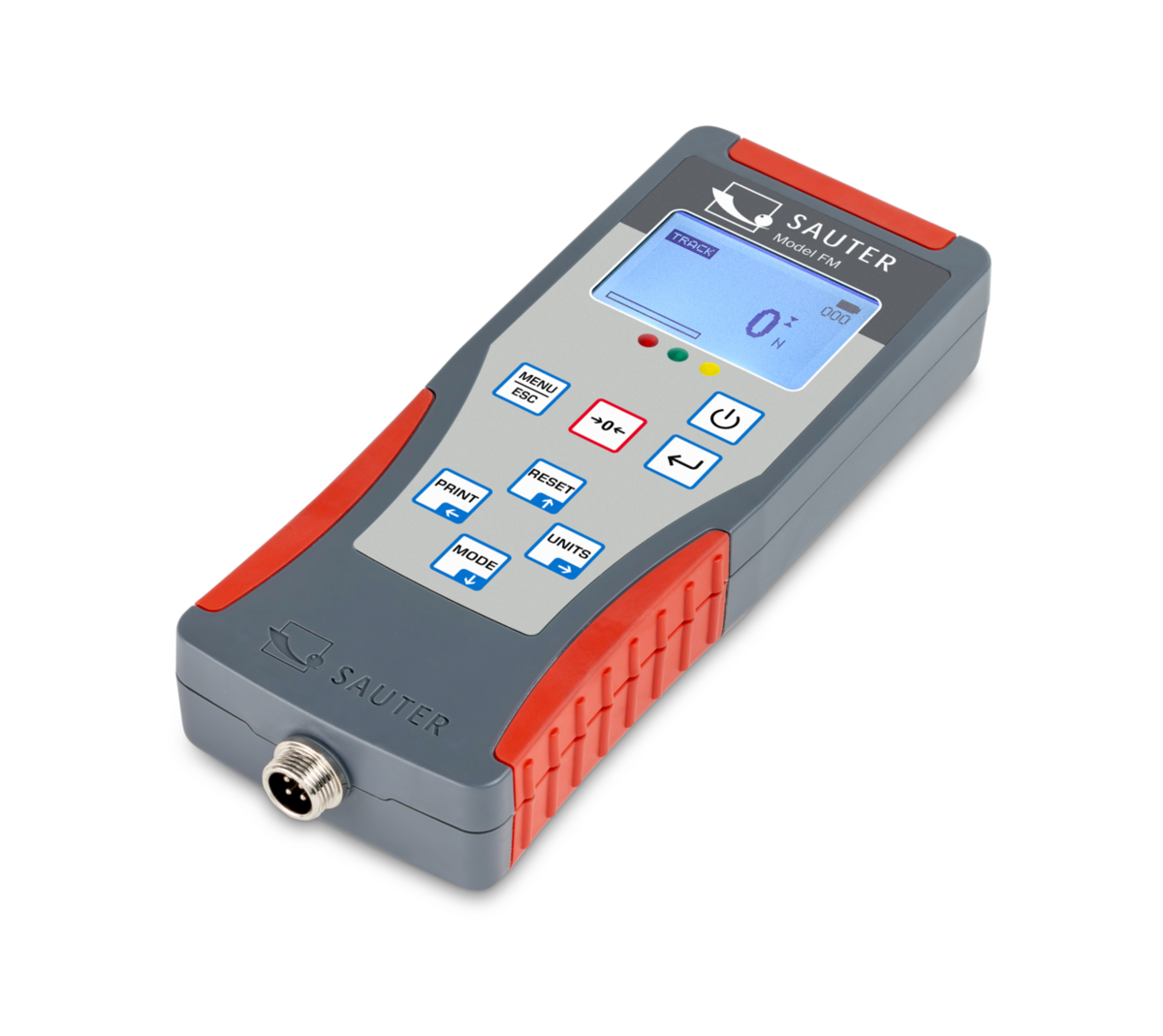

Digital force gauge (external measuring cell)
FM 20K
Product family: FM-M
Universal digital force gauge for tensile and compressive force measurements with external load cell
Technical Data
| Measuring range force [Max] (N) | 20 kN |
| Readability force [d] (N) | 10 N |
| Tolerance (% of [Max]) | 0,2% |
| Measuring head measuring frequency | 1000 Hz |
| Supplied power supply | Accu & Power supply |
| Memory function | |
| Limit-setting function | |
| Hold function | |
| Peak function |
Your price
€ 990,00 *
*plus shipping costs (not applicable for downloads), plus VAT
Available on stock
Do you have questions?
We will be happy to consult you on our SAUTER measuring devices
Tel.: +49 7433 9933-562
Standard
Option
Description
- Turnable display with backlight
- Peak-Hold function to capture the peak value or Track function for continuous display of measurement
- Capacity display: A bar lights up to show how much of the measuring range is still available
- Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by a visual signal
- Internal memory for up to 500 measurement values
- USB-C and PS/2 data interfaces for flexible data transfer and device coupling
- Selectable measuring units: N, kN, kgf, lbf

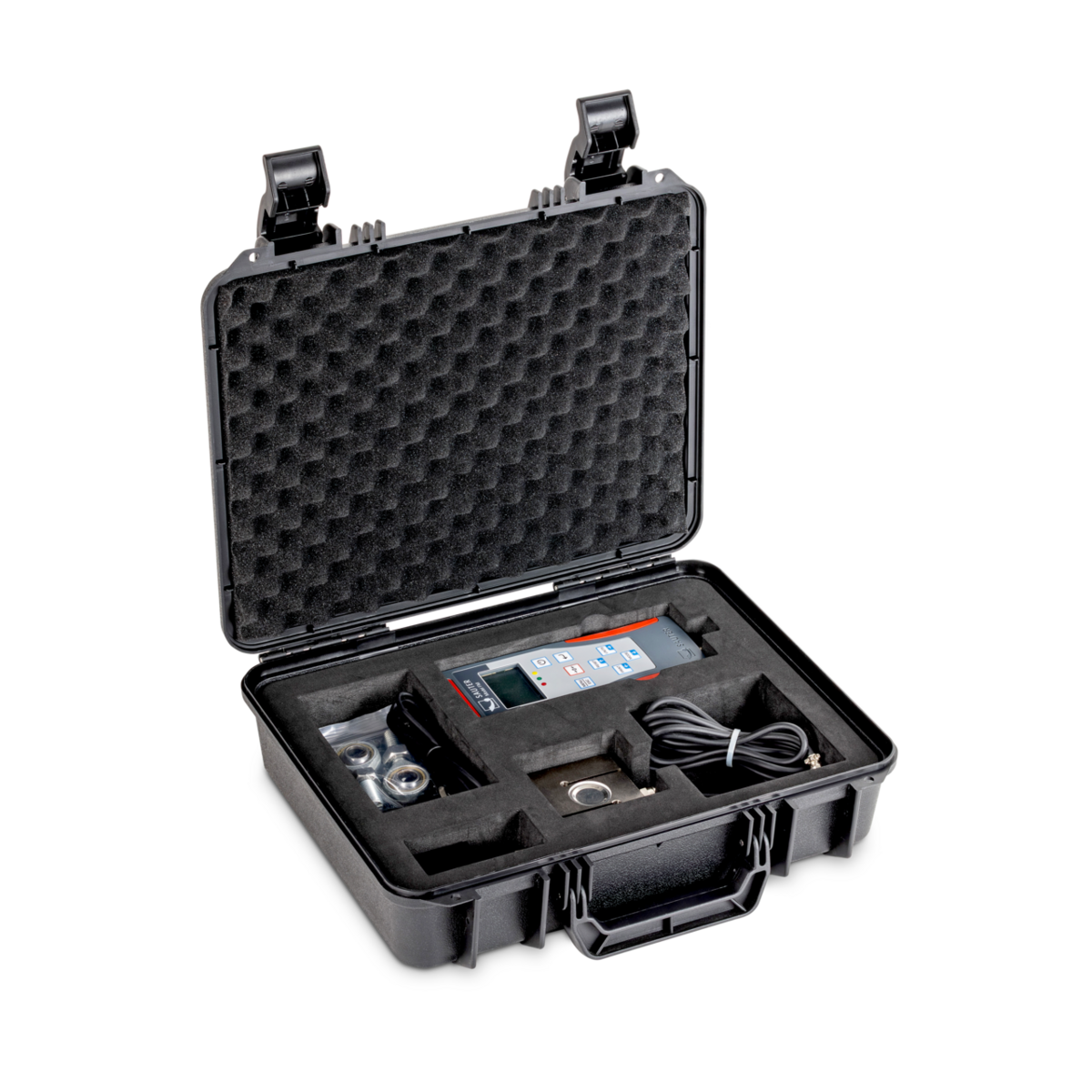

- Delivered in a robust carrying case
Applications
Main fields of application / Primary application areas
- Test laboratories
- Research and development
- Automotive industry
- Maintenance and servicing
- Plastics technology
Technical Data
| Measuring range force [Max] (N) | 20 kN |
| Readability force [d] (N) | 10 N |
| Tolerance (% of [Max]) | 0,2% |
| Measuring head measuring frequency | 1000 Hz |
| Supplied power supply | Accu & Power supply |
| Memory function | |
| Limit-setting function | |
| Hold function | |
| Peak function | |
| Material housing | ABS plastic |
| Dimensions completely mounted (W×D×H) | 71×31×180 mm |
| Net weight approx. | 0,30 kg |
| Interfaces | USB-Device |
| GTIN/EAN number | 4045761494923 |
