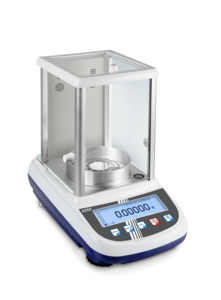

  • Analytical Balance KERN ALJ 200-5DA / ALJ 210-5A Main picture

Analytical balance
ALJ 210-5A

Product family: ALJ

Single-range semi-micro balance with large weighing range, graphics display and user-friendly recipe weighing function

Technical Data

Weighing capacity [Max] 210 g
Weighing capacity [Max] (ct) 1050 ct
Readability [d] 0,00001 g
Readability carat [d] (ct) 0,001 ct
Units g, mg, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz
Linearity ± 0,0001 g
Reproducibility 0,00005 g
Stabilization time 10 s
Tolerance weighing

more data

Your price
€ 3.220,00 *
*plus shipping costs (not applicable for downloads), plus VAT
Available on stock
Compare Technical data sheet Product brochure Download centre

Do you have questions?

We will be happy to consult you on our KERN scales and test weights

Tel.: +49 7433 9933-560

scales@kern-sohn.com

Standard

Internal adjustment: Adjusting accuracy using internal adjustment weight
Data interface RS-232:  For connection to printers, PCs or other peripheral devices for data transfer over longer distances. Network in bus topology possible
GLP/ISO protocol: The measuring device generates a GLP-compliant printout
Value & time: The measuring device displays the value, date, and time, regardless of the connected printer
Piece counting: Reference quantities selectable. Display can be switched from piece to weight
Formulation: Internal memory for complete recipes with name and target value of recipe components. Display-supported user guidance
Density determination: The density of liquids and solids with a density of ≤ /≥ 1 is determined directly in the measuring device
Percentage determination: determining the deviation in % from  the target value (100 %)
Units can be switched to e.g. non-metric units
Measuring with tolerance range (checkweighing): Upper and lower limit values can be programmed, e.g. for sorting, portioning or for measuring coatings or material thicknesses. The process is supported by an acoustic and/or optical signal
Hold function: When the weighing conditions are unstable, a stable weight is calculated as an average value
Universal plug-in power supply: With universal input and optional input socket adapters for EU, CH, GB or EU, CH, GB, US or EU, CH, GB, US, AUS
Weighing principle electromagnetic force compensation: Coil inside a permanent magnet. For the most accurate weighings
Package shipment by courier service: The duration of internal product provision is one day

Option

Accredited calibration (DKD): The duration of the accredited calibration is 3 working days

Description

  • ALJ 210-5A: Semi-micro model with just one weighing range with unbelievably high resolution, ideal where heavy items need to be weighed with the most accurate readout across the entire weighing range. Particularly advantageous: the ioniser KERN ALJ-A03 for neutralising electrostatic charge is already fitted as standard
  • Rapid and efficient operation thanks to the graphics display. Simple, clear user interface on the display in the following languages: DE, EN, FR, IT, ES, PT
  • Automatic internal adjustment, guarantees high degree of accuracy and makes the balance independent of its location of use
  • Short stabilisation time: steady weight values within approx. 10 s under laboratory conditions
  • Weighing with tolerance range (checkweighing): Input of an upper/lower limit value. A visual signal assists with portioning, dispensing or grading
  • Dosage aid: High stability mode and other filter settings can be selected
  • Internal memory for complete recipes with name and target value of the recipe ingredients. User guidance through display
  • Ergonomically optimised keypad for left and righthanded users
  • Large glass draught shield with 3 sliding doors for easy access to the items being weighed, Weighing space W×D×H 160×170×225 mm
  • Compact size, practical for small spaces
  • Protective working cover included with delivery

Note

Did you know?

  • The USP minimum sample weight is a measure for the smallest permitted weight in accordance with USP (United States Pharmacopeia).

Applications

Main fields of application / Primary application areas

  • Pharmaceutical applications
  • Material testing
  • Research and development
  • Complex recipes

Technical Data

Weighing capacity [Max] 210 g
Weighing capacity [Max] (ct) 1050 ct
Readability [d] 0,00001 g
Readability carat [d] (ct) 0,001 ct
Units g, mg, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz
Linearity ± 0,0001 g
Reproducibility 0,00005 g
Stabilization time 10 s
Tolerance weighing
Tolerance weighing - type of signal acoustically, visual
Interfaces RS-232 standard
Adjustment options Internal calibration (automatic)
Recommended adjusting weight 200 g (E2)
Ambient temperature 5 °C – 35 °C
Dimensions weighing surface (Ø) 80 mm
Material draught shield glass
Material housing plastic
Dimension housing (W×D×H) 210×340×330 mm
Material weighing plate stainless steel
Net weight approx. 6 kg
Construction type of the scale Single-range balance
GTIN/EAN number 4045761252882
