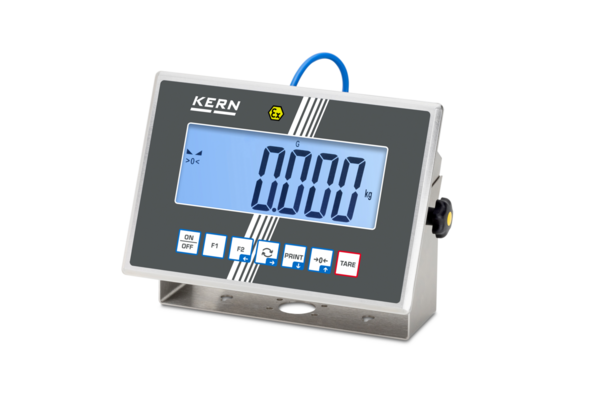

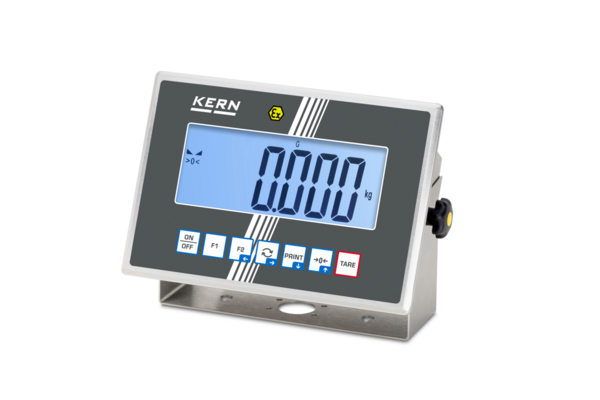

Xxplosion-proof display device
KXC-TM-EX2

Description

• Explosion protection: Category 3 display device, suitable for use in zones 2 (gas) and 22 (dust) as per Directive 2014/34/EU
• Protection against dust and water splashes IP65 / IP69
• Standardised, convenient KERN concept of operation, consistency across products in terms of design, menu structure, button functions, interface connection and interface protocol
• Industry 4.0: The exchange of data and control commands is optional using up to four interfaces to suit individual requirements: two wired connections (RS-232, Ethernet, USB or analogue module) and two wireless connections (WiFi, Bluetooth)
• Each interface can be set up separately, e.g.:
  - Interface 1 (WiFi): Continuous sending to a PC for documentation of a process
  - Interface 2 (RS-232): Print stable weight
  - Interface 3 (analogue module): Controlling a device when the target weight is reached
  - Interface 4 (Bluetooth): Continuous sending to a tablet to monitor a process
• KERN Communication Protocol (KCP): The KCP permits searching and remote control of the balance using external control devices or computers

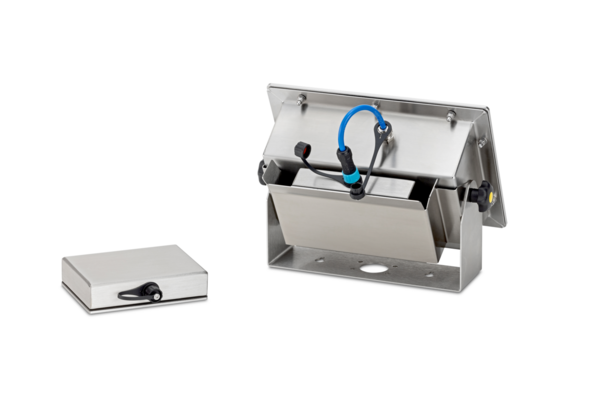

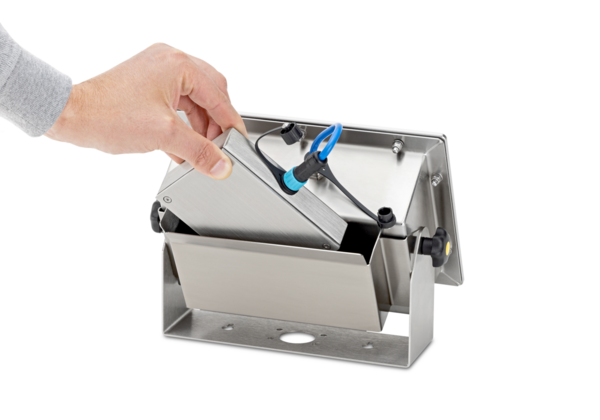

• Option of rechargeable battery pack for mobile use in hazardous areas (KERN YKR-06-EX1, see accessories) and additional rechargeable battery pack (KERN YKR-04-EX2, see accessories) for continuous operation of the balance, even when charging
• Available as an option with alibi memory for paperless archiving of weighing results. This also means the results of weighings with mandatory verification can be electronically evaluated and processed further
• Mains cable with open ends, length approx. 2,5 m

Note

Please note for your order

• Only two wired connections (RS-232, Ethernet, USB or analogue module) and two wireless connections (WiFi, Bluetooth) can be used at the same time
• Wired interfaces are supplied without cables. The required shielded interface cable (Ø 3 – 6,5 mm) for hazardous areas must be provided by the operator
• When configuration as the battery-operated variant (KERN YKR-06-EX2, see accessories) is selected, the scale is fully designed for battery operation, i.e. mains operation is no longer envisaged. It is not possible to then convert back to mains operation

Did you know?

• Available only from authorised specialist retailers
• Tip: Order an additional battery (KERN YKR-04-EX2, see accessories) directly for continuous operation of the scale, including while charging

Applications

Main fields of application / Primary application areas

• Chemical industry
• Pharmaceutical industry
• Food industry
• Wood industry, Wood processing

Technical Data
