Stereo Zoom Microscope
OZL 463

Product family: OZL-46

The flexible, affordable all-rounder with zoom function for schools, training companies, inspection authorities and laboratories

Technical Data

Optical system Greenough
Tube type Binocular
Ocular magnifications 10 x
Ocular visual field 20 mm
Magnification ratio 6,4:1
Zoom [Min] 0,7 x
Zoom [Max] 4,5 x
Illuminance Reflected light, Transmitted light
Illumination type transmitted light LED

more data

Your price
€ 600,00 *
*plus shipping costs (not applicable for downloads), plus VAT
Available on stock
Compare Technical data sheet Product brochure Download centre

Do you have questions?

We will be happy to consult you on our KERN microscopes and refractometers

Tel.: +49 7433 9933-561

optics@kern-sohn.com

Standard

360° rotating microscope head
Binocular microscope
LED lighting
Type of illumination - incident
Type of illumination - transmitted
Zoom function
Power supply 230 V
Delivery_Express_1_day

Description

  • The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their easy handling, flexibility as well as their stability and economical price.
  • The LED incident and transmitted illumination included as standard guarantees the very best illumination of your sample
  • As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry.
  • As standard this microscope offers you continuous total magnification of -
  • The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
  • A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

Applications

Field of application / Area of application

  • in vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, section, quality control

Applications and samples

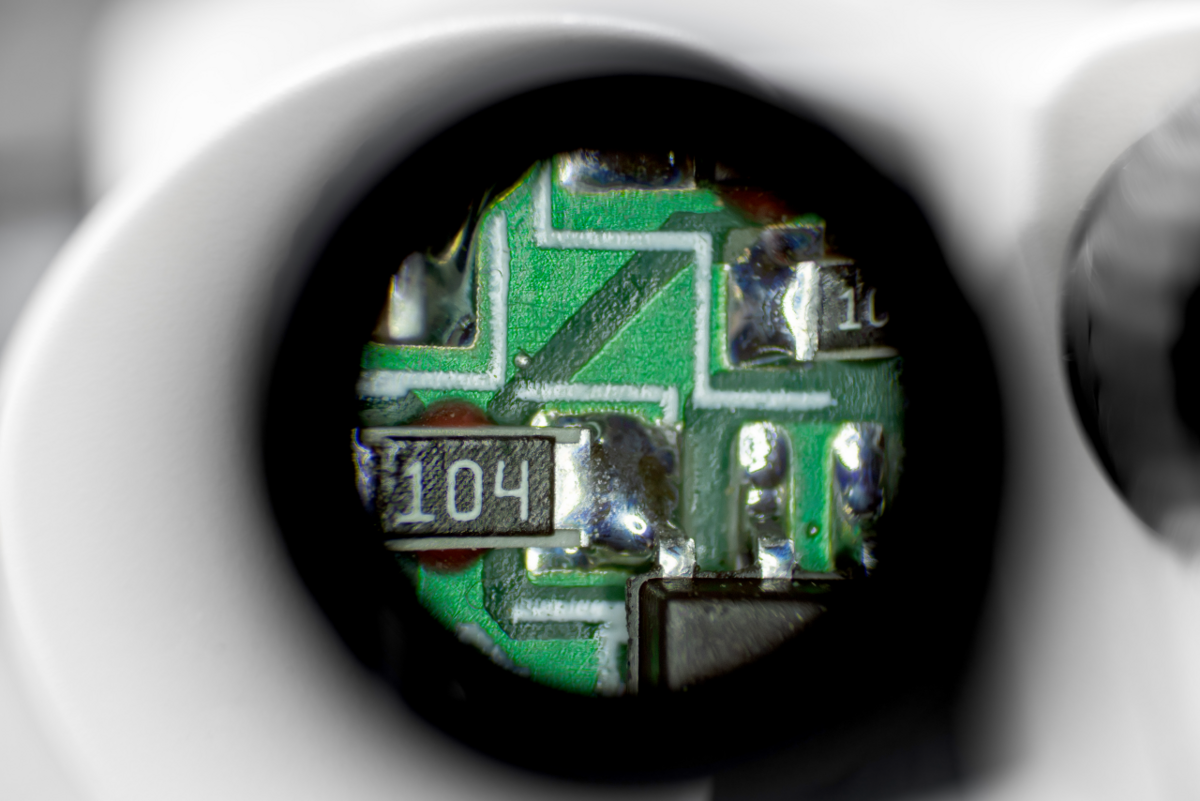

  • Samples with focus on three-dimesnional impression (depth, thickness), e.g. insects, seeds, circuit boards, components

Technical Data

Optical system Greenough
Tube type Binocular
Ocular magnifications 10 x
Ocular visual field 20 mm
Magnification ratio 6,4:1
Zoom [Min] 0,7 x
Zoom [Max] 4,5 x
Illuminance Reflected light, Transmitted light
Illumination type transmitted light LED
Illumination type incident light LED
Illumination intensity incident light 3 W
Focusing mechanism coarse drive
Working distance 105 mm
Sample height [Max] 140 mm
Stand type pillar
Dimension (W×D×H) 300×240×420 mm
GTIN/EAN number 4045761175112
